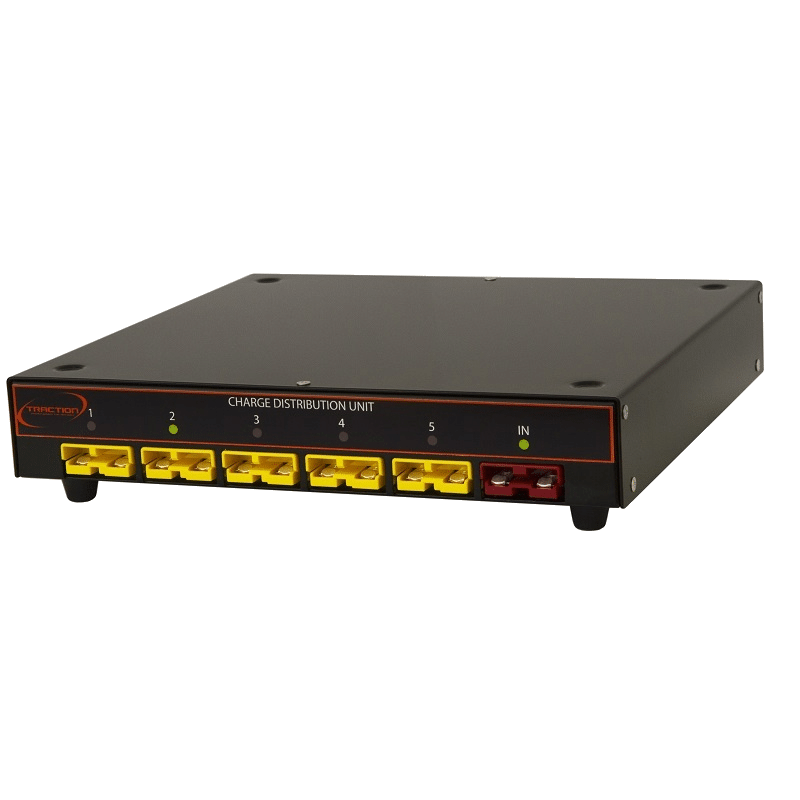

Traction CDU1 Battery Bank Adaptor

$1,409.00

Battery Bank Adaptor

OVERVIEW

This is a complementary product to the MPL50 charger and MPL50-Li charger that manages charging of a bank of up to 5 batteries.

It can be either placed under the MPL50/MPL50-Li charger or situated remotely by use of optional link lead.  Power is provided from the MPL50/MPL50-Li. When a battery is disconnected the unit will turn off power to the output making the leads safe from accidental shorts.

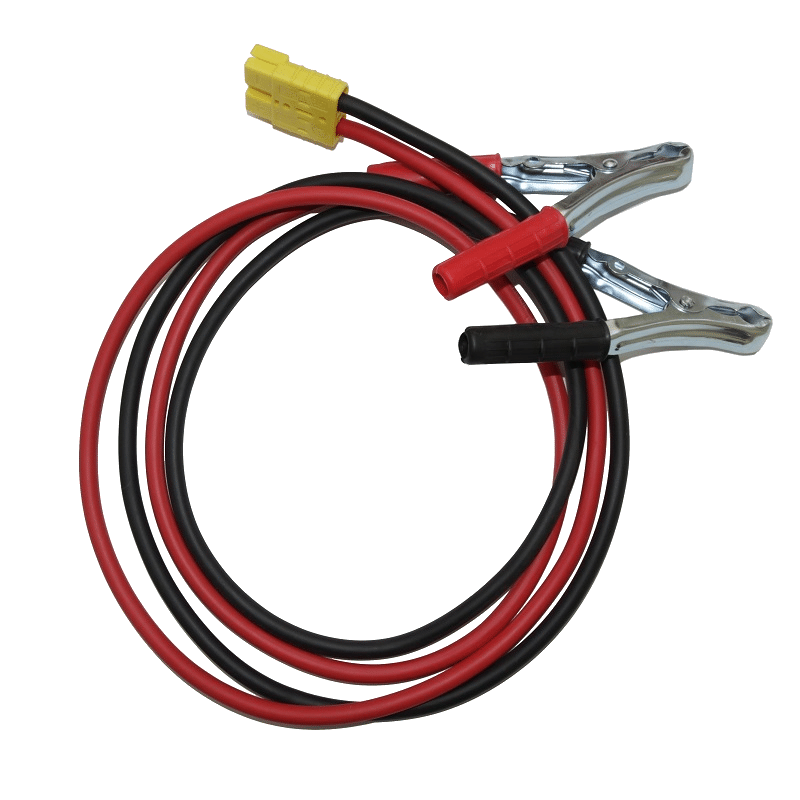

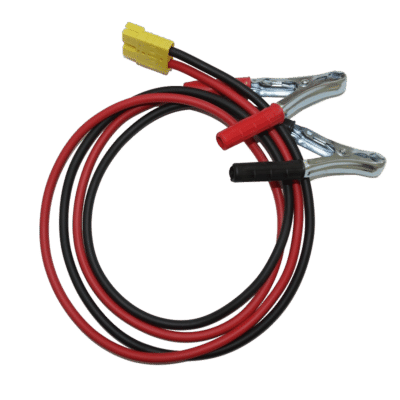

The 5 output connectors are compatible with Traction standard yellow 50 Amp lead sets.

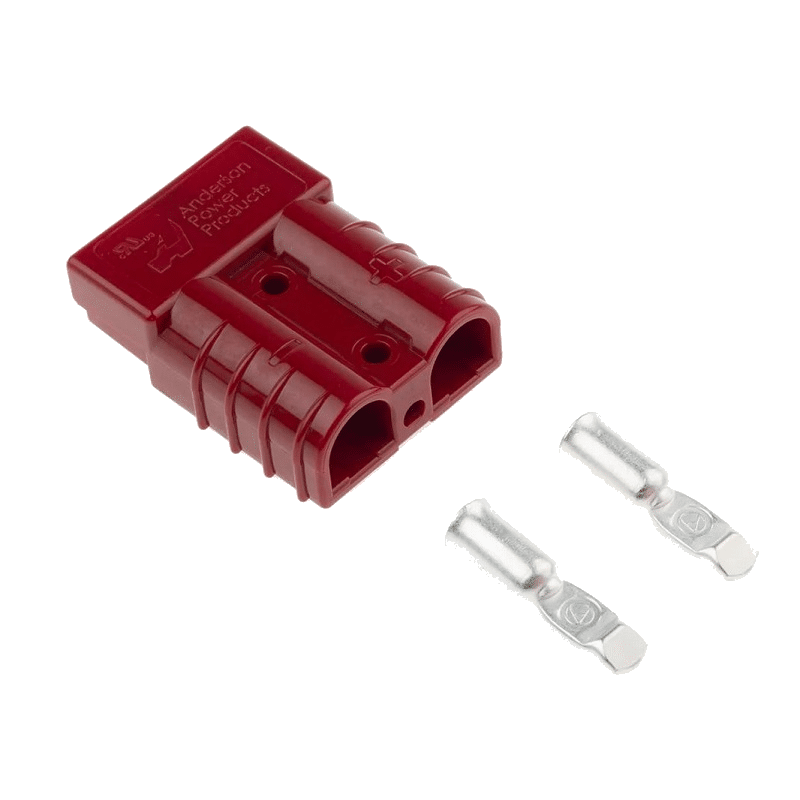

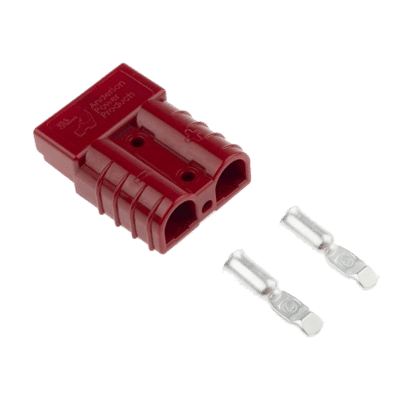

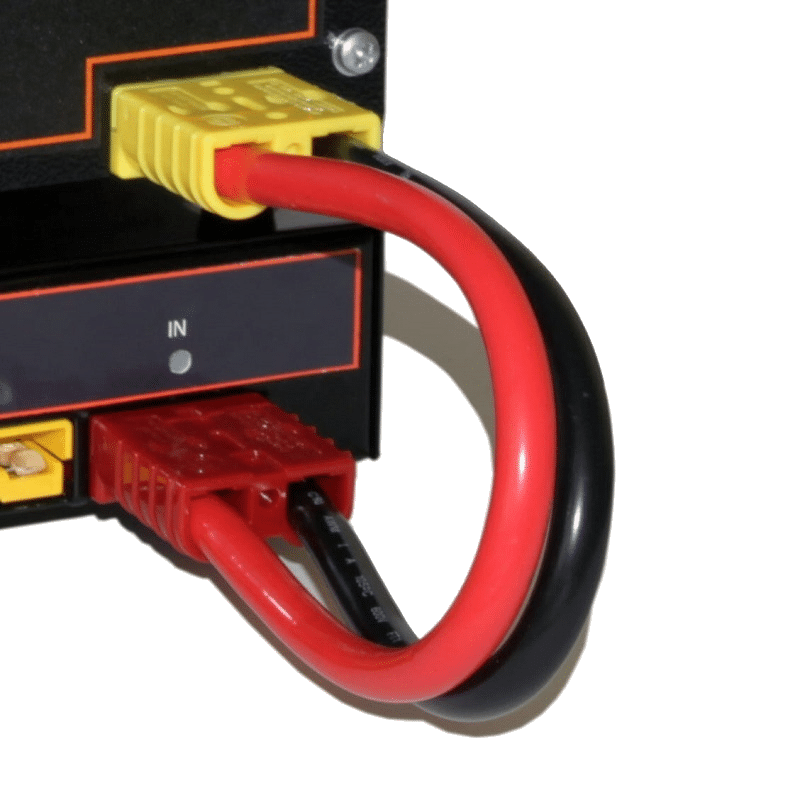

The module input is a red 50 Amp connector. A yellow to red interface lead is provided ensuring correct connection.

The status of each channel is indicated by an LED above each connector.

Units can be daisy-chained allowing up to 17 batteries to be connected simultaneously.

LiFeP04 Compatible

Weight 6 kg
Dimensions 320 × 250 × 230 cm
Battery Type

, , , , , ,

Lithium

Lithium

BROCHURE

CDU1   – Brochure DOWNLOAD

JLR Service Release

MANUAL

CDU1 Manual – DOWNLOAD
