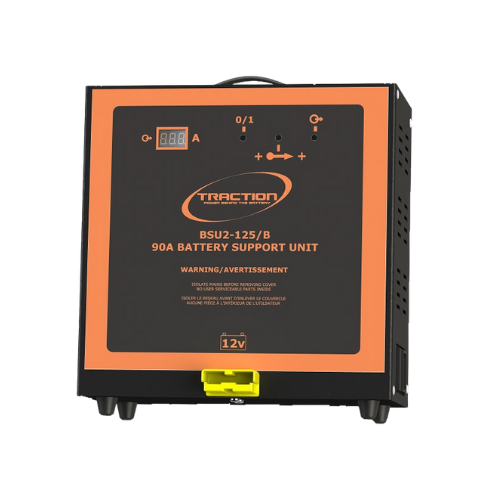

Traction BSU2-90B Battery Support Unit

$2,364.00

90A, 13.4V Battery Support Unit

DIAGNOSTICS, RE-PROGRAMMING, ABS BRAKE BLEEDING

BSU2-90 provides a constant voltage to prevent loss of data and possible damage to control units during software updates, and module reprogramming as well as diagnostic processes when in a Key On, Engine Off state.

During diagnostic or programming operations, the vehicle’s systems are operating solely from the battery. Maintaining battery charge during this process is critical.

The status of BSU2-90 is indicated simply by three LED’s – POWER, POLARITY, DEMAND. When all 3 are illuminated, BSU2-90 is supporting the battery.

Designed to be wall, ramp or trolley mounted the BSU2-90 has been designed to meet the needs of the high power consuming vehicle.

FEATURES

  • BSU2-90 provides a selectable stable voltage and up to 90A of fully regulated power to prevent loss of battery charge and damage to vehicle components.
  • BSU2-90 can be used with any 12v automotive battery.
  • When the battery is charged the BSU is a regulated power supply to sustain accessory loads and offset parasitic drain.
  • Can be used in the showroom to maintain the battery charge while power consuming accessories are being demonstrated without fear of power loss.
  • Reverse polarity protection.
Weight 8 kg
Dimensions 295 × 255 × 130 cm
Battery Type

, , , , , ,

BROCHURE

BSU2-90 – Brochure DOWNLOAD

MANUAL

BSU2-50, CSU2-50, SSU2-50, BSU2-90, BSU2-125 Manual+General+Safety+Precautions_ENGLISH  – DOWNLOAD
